OceanTec Electronics

Pressure Regulators

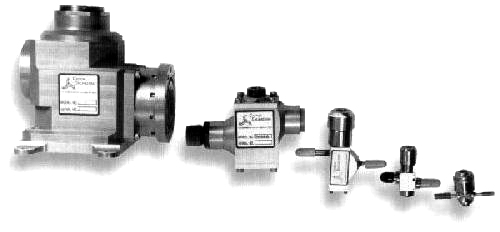

Our family of Pressure Regulators are available with porting options ranging from 1/16 inch tube stubs to 2.0 inch flanges.



Standard materials include aluminum alloy, stainless steel and titanium with outlet pressures per customer requirements and seals compatible with various gaseous media.

They are spring referenced and pressure balanced rated to 10,000 psi inlet pressure on some sizes and incorporate soft seats.

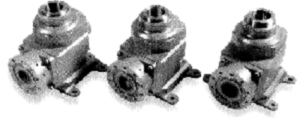

1.5 inch line size Inlet pressure of 5000 psig Outlet pressure of 600 psig Weight of 14.25 pounds Aluminum alloy material Flow rate of 15 lb/sec gaseous nitrogen

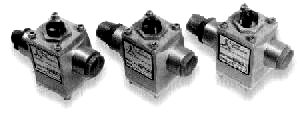

3/4 inch line size Inlet pressure of 5000 psig Outlet pressure of 600 psig Weight of 2.75 pounds Aluminum alloy material Flow rate of 114 scf gaseous nitrogen

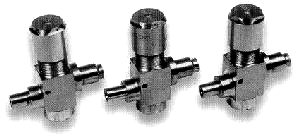

1/4 inch line size Inlet pressure of 10000 psig Outlet pressure of 1100 psig Weight of 4.0 ounces Titanium material Integral inlet filter
