OceanTec Electronics / OTDesign
 |
OCEANTEC DESIGN |

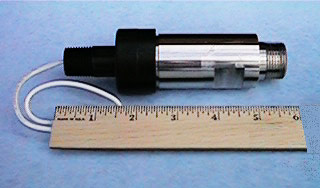

PENT 3000
Keep your pressure vessels online.
Significantly reduce maintenance costs.
 |
No more forgetting and no more down time to replace sacrificial anodes in your pressure vessels. No more expensive repairs and no more vessel replacement costs. A revolutionary new tool is now available that will allow you to install an impressed current system in all your pressure vessels. In most cases this tool will also let you monitor the cathodic potential of your vessel either manually or electronically via computer. |
SPECIFICATIONS

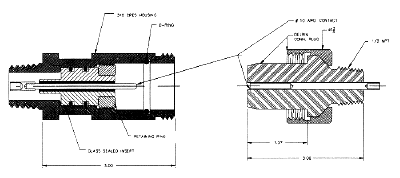

MECHANICAL
| Overall length | 6 inches |
| Body thread size | 3/4 inch National PipeThread |
| Electrical thread size | 1/2 inch National PipeThread |
| Pressure body | Stainless Steel |
| Insert type | Hermetically sealed |
| Pressure rating | 3000 psi |
ELECTRICAL
| Rating | Class 1, Division 2 |
| Connector plug | Inert machined delrin |
| Electrical contact | #10 AWG |
| Amperage rating | 23 amps |
| Voltage rating | 500VDC |
 |
